Filter pane of the Web Client
Angles for SAP contains a large number of pre-defined Angles, Dashboards, and Templates out of the box. Daily use by your organization will further increase the number of available items. There are various filter options available that are essential for finding the correct information. You can also mark your own favorites and a collection of predefined quick filters is available.
You can show or hide the filter pane by clicking or
. Your setting will be remembered the next time you log in. The filter pane consists of the following sections:
Business Process Filters:
Angles for SAP is business process-oriented. All Angles, Dashboards, and Templates are labeled to belong to one or more business processes. Depending on your installation and access rights, the search results will only show items from the active business processes. When you have access rights to more than one business process you can decrease or increase the number of search results by selecting or deselecting one or more business processes. See also Business processes. Note that when you select all business processes this will have the same effect on your results as when you deselect all business processes. The following business process filters are available:
- Purchase to Pay
- Supply to Demand
- Order to Cash
- Finance to Report
- Plant Maintenance
- Quality Management
- Human Capital Management
- Governance, Risk and Compliance
- Information Technology
Tags
You can add custom tags to your Angles (see Editing the tags (Angle)) and your Dashboards (see Editing the tags (Dashboard)). You can then use these tags and tags that other users of the system have created as additional filter options (see Filtering the search results). A collection of the tags that are used most often is displayed under the tag search.
General Filters
The general filters consist of two types: the default filters and the user-specific filters:
Default Filters
Show/hide all Angles. |
|
Show/hide all Templates. |
|
Show/hide all Dashboards. |
|
Show/hide your unpublished Angles and Dashboards. |
|
Show/hide your Angles and Dashboards containing unpublished Displays. |
|
Show/hide validated Angles. Angles can only be validated by authorized users. |
|
Show/hide Angles, Dashboards and Templates with warnings. This filter is only available if Show filter for Angle warnings is selected in the Settings pane. See Warnings and errors. |
|
Show/hide your favorite Angles, Dashboards and Templates. You can 'star' any item in the Search results page. Angles and Dashboards can also be starred in Angle results page or Dashboard results page. |
User-specific Filters
Model name |
Show/hide all Angles that were created for a specific model. These filters are only available in case of multiple active models. There are two types of models: models with downloaded data and real-time models. When you hover over a model name you will either see the time lapsed since the last time the model was refreshed (for 'downloaded' models), or an indication that the model is running real-time. |
I created |
Show/hide all items you created. This option is only available if you are authorized to create Angles. |
I can validate |
Show/hide all Angles and Dashboards you can validate. This option is only available if you are authorized to validate. |
I can manage |
Show/hide all items you can manage. This option is only available if you are authorized to manage items. |
Additional Search Labels

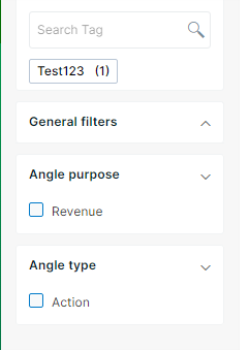

Your system administrator can create additional search labels and label categories in the IT Management Console. The following image shows two label categories, Angle purpose and Angle type, each with one search label:
These additional search labels are only visible if created on your specific installation. They can be assigned to all Angles, just like the default and user-specific filters above. This increases the number of filter possibilities even more. See also Editing the search labels when publishing.
