Adding a Filter to a Display
You can add a filter to a Display even if the Angle is validated.
To add a filter to a Display
Execute the Angle that contains the Display (see Executing an Angle or Template ). The Angle results page opens.
On the Details pane (Angle) , click the Display details (Angle) tab.
-
In the Filters & Jumps section, click
. The Choose field dialog box opens.
If the Display contains a Jump , the new filter is added after the Jump . To execute the filter before the Jump instead, click
next to the Jump name to add the filter before the Jump .
Select the field that you want to use to filter the Display.
Click OK. The filter is added to the Display details. Its content depends on the type of field that you selected.
-
Modify the filter. The filter consists of:
-
Filter criteria
The filter criteria depend on the type of data that you want to filter. You can filter numbers, currencies, text strings, and more. Each of these data types has a set of applicable filters. The filter options will be displayed according to the type of data that you choose.

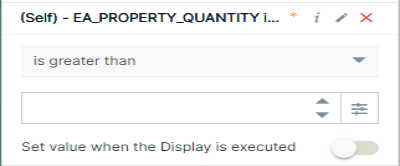

In the example above, the data is filtered on Quantity. You can select the criterium from the drop-down list (1) and add the limit value(s) (2).
You can also compare two fields with the same data type, for example, time and date fields.
Certain filter options contain a list of values. To select one or more values, click
to open the list of values and choose the required value(s).
Tip: For more information on the available filters per data type, and on how Angles for SAP deals with limit values, see Field filters .
-
Set value when the Angle is executed
Select this option to create a dynamic filter where any limit values are requested upon execution of the Angle (see Ask at Execution ).
-
Click Apply to update the Display.
-
In the Action bar , click
to save the Display .
You can also save the entire Angle and all the Displays it contains in one go. Click the caret of the Save Display button (
) and select Save all .
Note: If you edit and save a Display that is linked to an automation task, you will get a confirmation prompt to indicate this. If you have edited more than one Display , the confirmation dialog box will list them all. Deselect a Display if you do not want to save the changes you made. If you have sufficient privileges, click
to open the corresponding automation task in the IT Management Console. Only save your changes if you are aware of their impact. Changing a Display that is linked to an automation task may cause the automation task to fail.
